Compact Tripod with Friction Controllable 3-Way Pan Head.
Categories : Tripod , A.M.T , Pan Head , Aluminium , Tripod with Heads , Photography , Slik , Medium type ,
Brand : Slik
Share

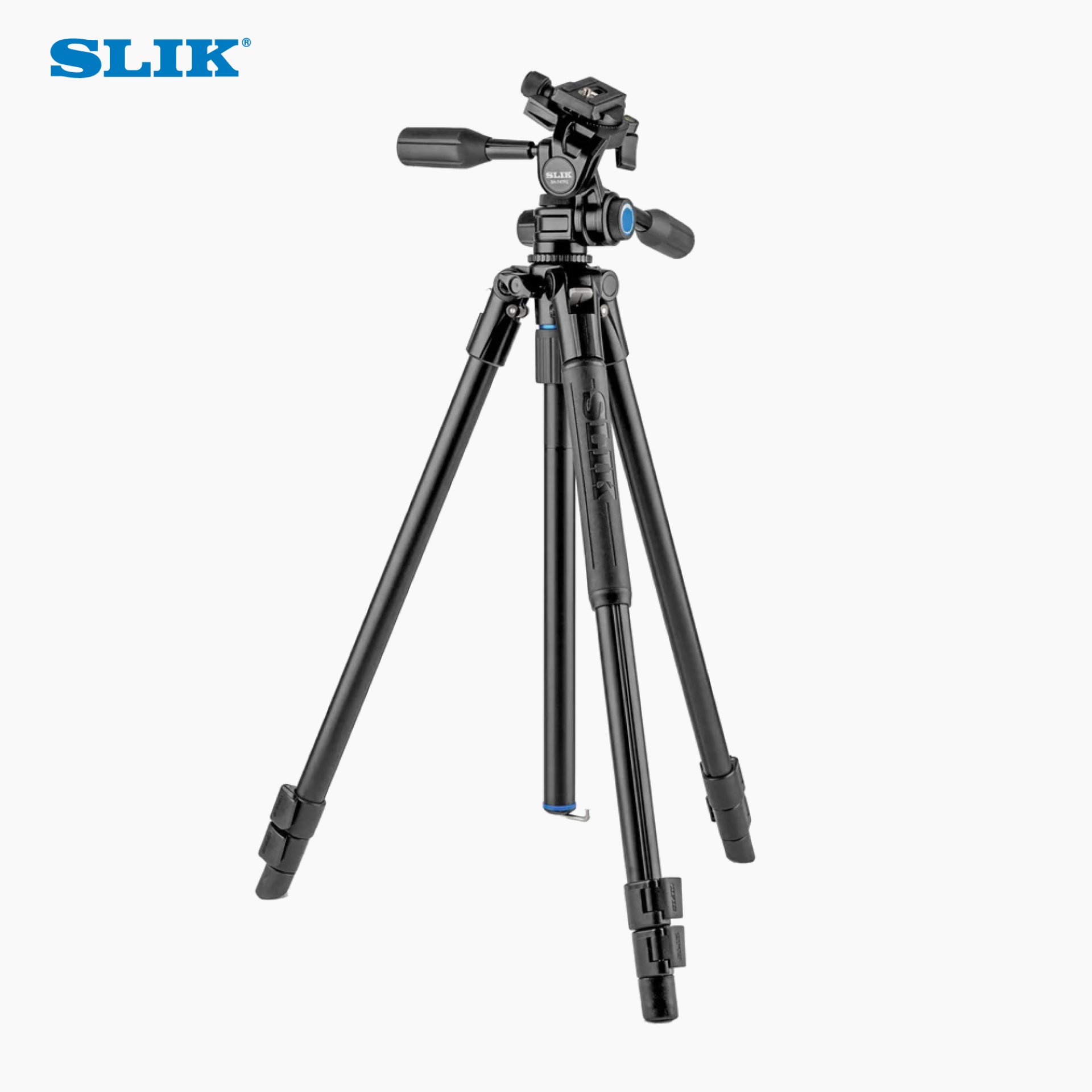

The SLIK PRO AL-323-3WFC is designed for DSLR’s that have video recording capability. The SH-747FC is a smooth-moving fluid effect 3-way pan head with Arca-compatible platform which is 90 deg. rotatable. This all-metal head is specifically designed for photo and video use. The SH-747FC has pan and tilt drag controls that are separate from the pan/tilt handle locks. This allows the photographer to fine-tune the tightness of the movement based on the weight of the camera and lens.
SLIK PRO AL-323 tripod is equipped with a SLIK original RFM (Rappid Flip Mechanism) that provides an easy way to adjust the leg angle, a bubble level for easy horizon correciton and an accessory hole that will accept your choice of extension arms for mounting monitors, lights, tablets or other photographic accessories.

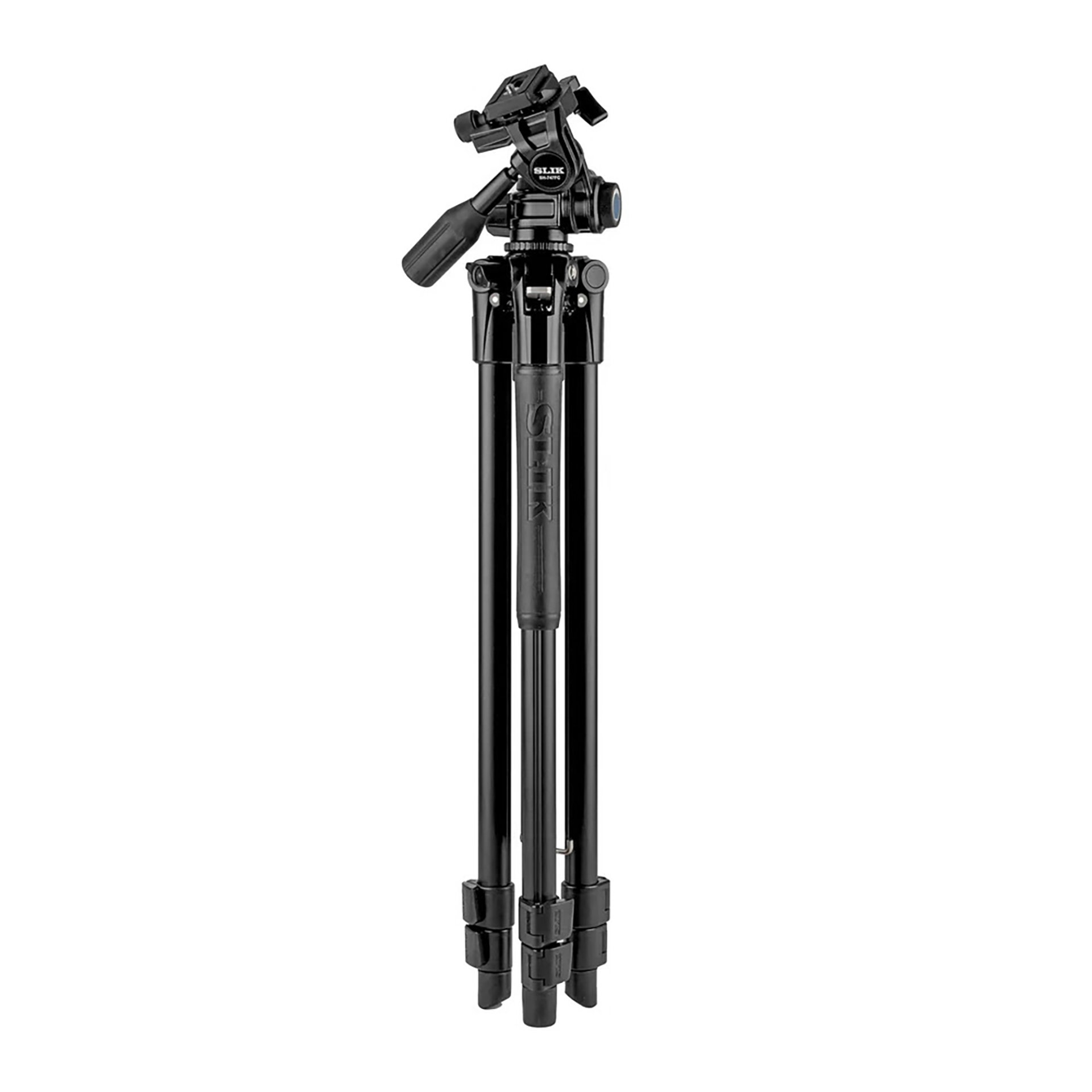

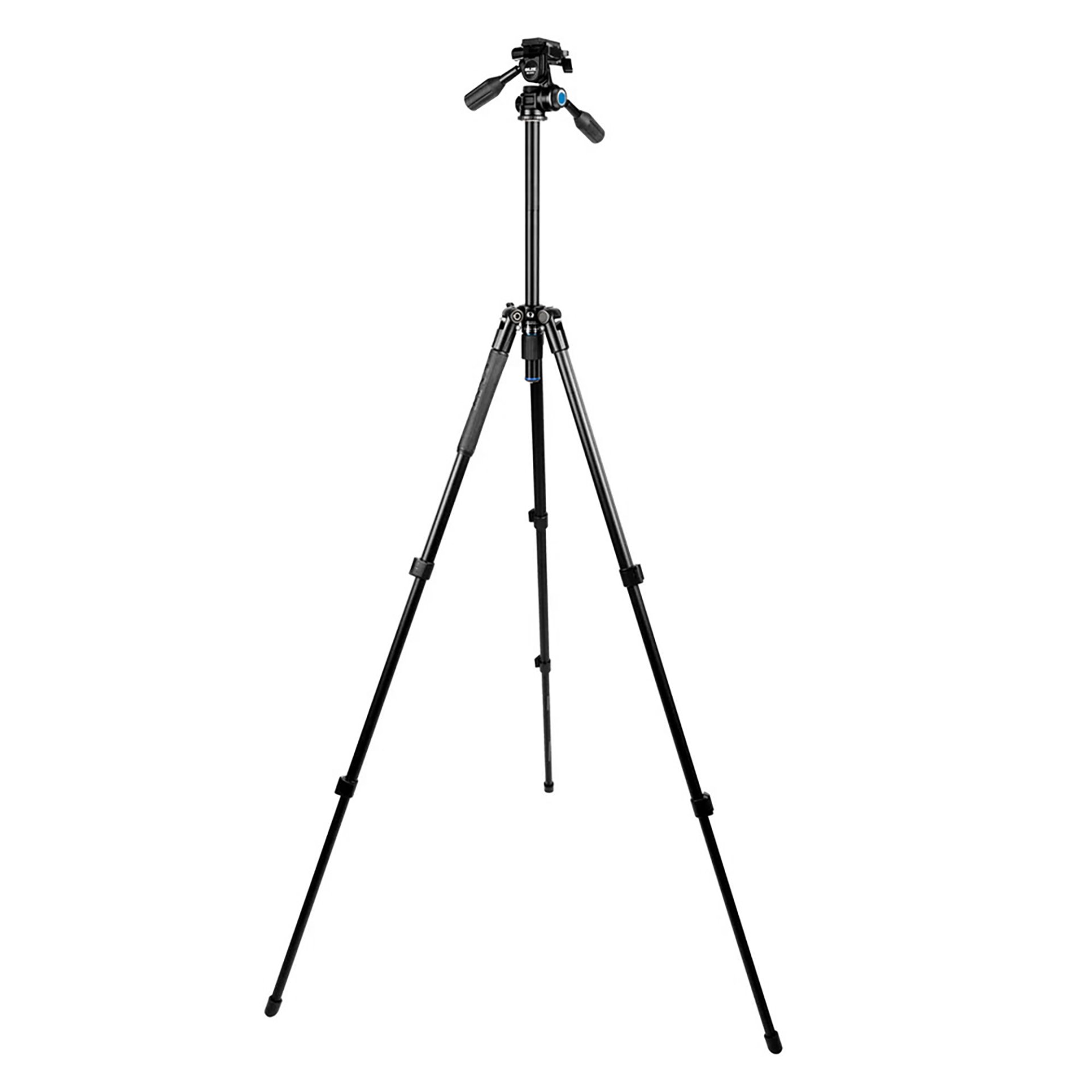

The 3 leg sections means the tripod folds down to 620mm in length making it an easy traveler while fully extended it can reach up to 1,605mm. The SLIK PRO AL-323 tripod also makes setting up easy with secure, speed-release leg locks.
A: 1,605
B: 1,290
(mm)
310
(mm)
620
(mm)
4
(kg)
2,000
(g)
23.4mm
3-Section
3-steps
leg opening
3WAY
Bubble level
Arca-Swiss
Compatible
With Bag
The tripod system package comes with a SH-747FC friction controllable 3-way pan & tilt head that features 90 deg. rotatable Arca-Compatible quick-release platform. The 3-way pan & tilt heads offers separate axis controls (up/down, left/right & roll) This provides more precise adjustments on one axis while not affecting the other two axis for accurate framing.
The series is completely redesigned its tripod body and leg joint, it reduce vibration and increase the torsion strength

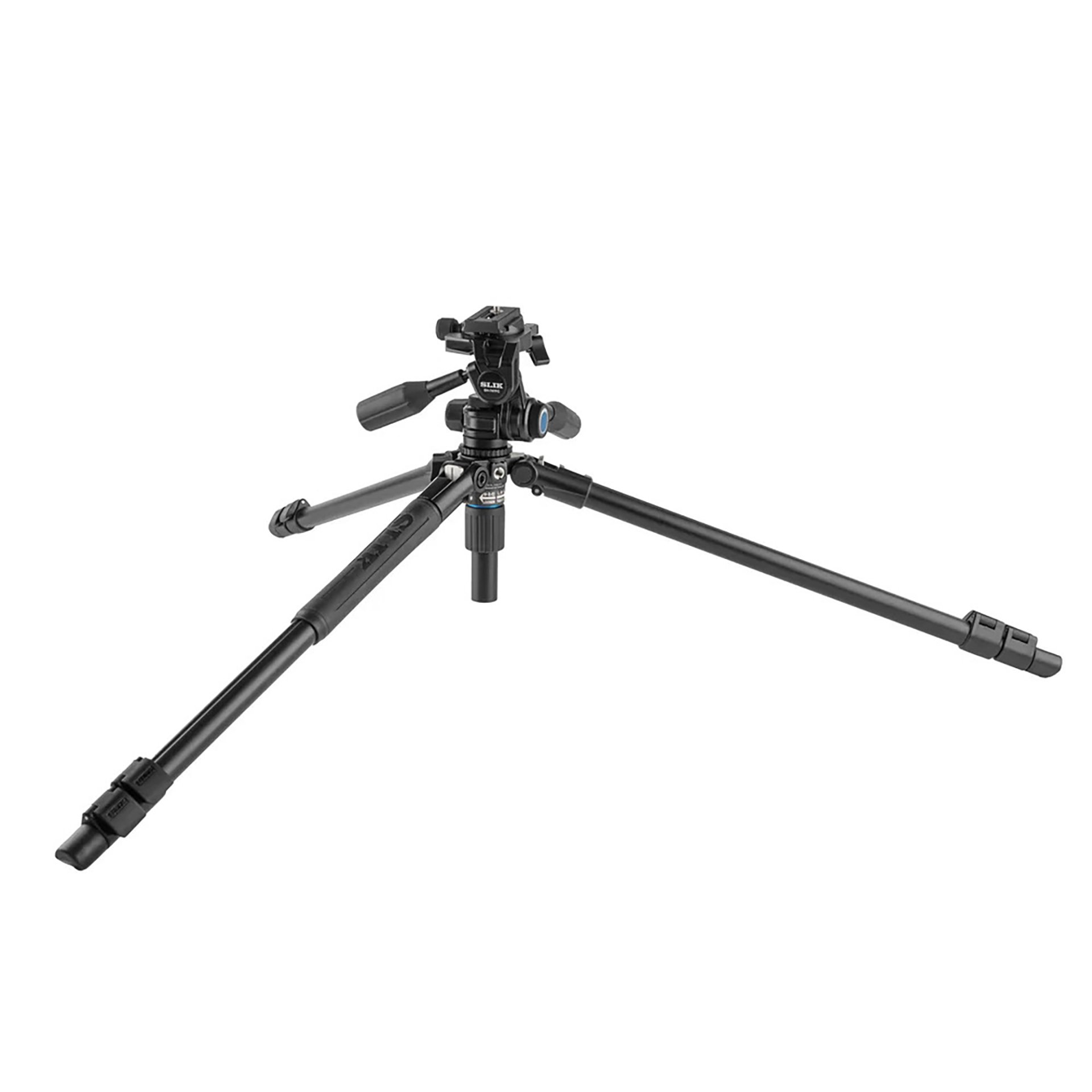

SLIK original Rapid Flip Mechanism (R.F.M.) offers fast and stress-free leg angle adjustments. Simply flip down the lock lever releases the leg lock and allows you to change the leg angle opening to desired position.
Accessory port accepts 1/4" or 3/8" thread (by removing the screw thread adapter) accessories like magic arms to hold the light, phones or tables
Brand
SLIK
Model
SLIK PRO PRO AL-323-3WFC
Color
Black
Max. Load
4kg
Folded Length
620mm
Max. Operating Height
1,605mm
Min. Operating Height
320mm
Max. Center Column Ext.
315mm
Weight
1,955g
Head Portion Weight
645g
Leg Portion Weight
1,310g
Leg Lock Type
S.R.L.
Leg Tip
Rubber
How To Mount Camera
Q.R.S. 6507
Number of Leg Sections
3
Diameter of the first upper leg
23.4mm
Type of Center Column Elevation
Center column type
Head
3-way pan head SH-747
Type of Bubble Level
two circular bubble
Special Features
Multi-position leg
